BrainBit Headband

EEG hardware platform for your product

BUY NOW
* BrainBit Headband is a non-medical product and not intended to diagnose, treat, or cure

Key features

BrainBit Headband is a smart EEG device which monitors brain activity and gathers data that can be converted and used without professional help in reading.

4 channel EEG

O1, O2, T3, T4

Wireless connection

Bluetooth LE

Removable battery

up to 12h battery life

Dry electrodes

no gel needed

Easy start

easy to use and clean

SDK available

forever for free

BrainBit is the best solution for researchers and developers

Brand new EEG format

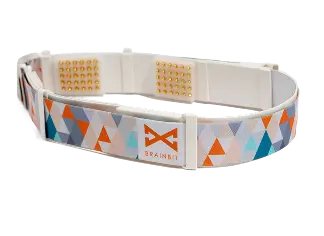

BrainBit is an EEG headset designed as a flexible stretchy stripe with dry electrodes, built-in electronics and a removable battery for your convenience. As dry electrode technology does not require gel, customers can experience the highest level of comfort and convenience when using this system.
Multipurpose
The device can be used both for personal use, as well as B2B integrations, neurofeedback, research, digital art, meditation and custom product development. The BrainBit device comes with an Software Development Kit (SDK), which gives almost unlimited possibilities for the implementation of your ideas and projects, your own goals, multiple studies and applications.
Specifications
Configuration

4 EEG channels: O1, O2, T3, T4

Flat golden plated Reference and Common electrodes
at the frontal area

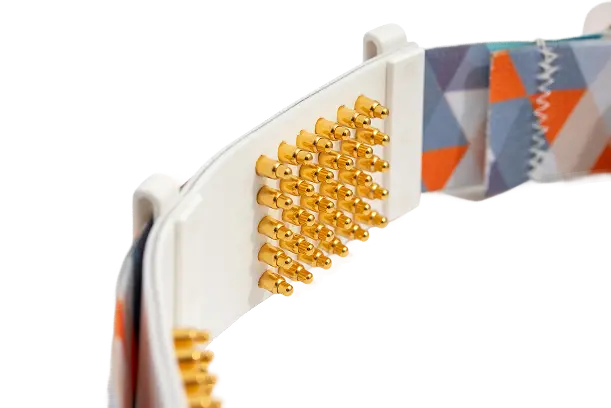

Dry golden plated spring-loaded electrodes

Removable battery unit

4 EEG channels: O1, O2, T3, T4

Flat golden plated Reference and Common electrodes
at the frontal area

Dry golden plated spring-loaded electrodes

Removable battery unit

Electronics

Sampling rate: 250 Hz

Measured voltage range: ± 0,4 V

Battery charge time: up to 4 hours

Continuous work time: 12 hours

Raw signal band from 0 Hz to 100 Hz

Communication interface: BLE

Sampling rate: 250 Hz

Measured voltage range: ± 0,4 V

Battery charge time: up to 4 hours

Continuous work time: 12 hours

Raw signal band from 0 Hz to 100 Hz

Communication interface: BLE

Usability & Service

Headband is soft and flexible

Easy to wear due to universal size and textile tape

Headband is easy to clean between users

1-year warranty

FCC Declaration, CE Certificate

Shipping worldwide

Headband is soft and flexible

Easy to wear due to universal size and textile tape

Headband is easy to clean between users

1-year warranty

FCC Declaration, CE Certificate

Shipping worldwide

Software

Charge Free SDK for: Java, Kotlin, Objective-C, Swift, C++, C#, Python, ReactNative, Unity, Xamarin

Supported platforms: iOS, Android, Windows, MACOS, Linux

Extracting all brain rhythms: Delta, Alpha, Beta, Theta, Gamma

Artifacts detection algorithms

Charge Free SDK for: Java, Kotlin, Objective-C, Swift, C++, C#, Python, ReactNative, Unity, Xamarin

Supported platforms: iOS, Android, Windows, MACOS, Linux

Extracting all brain rhythms: Delta, Alpha, Beta, Theta, Gamma

Artifacts detection algorithms

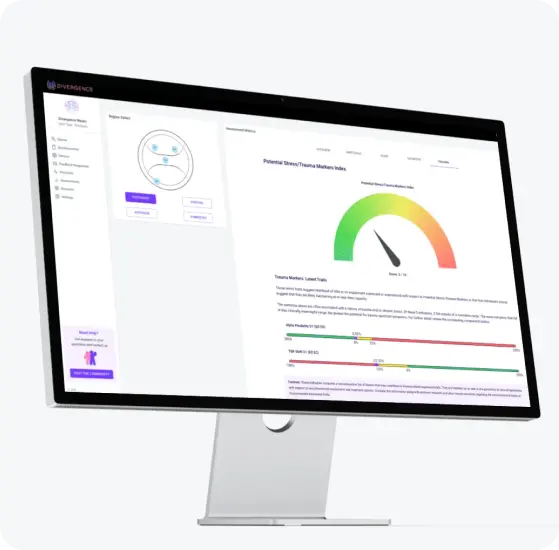

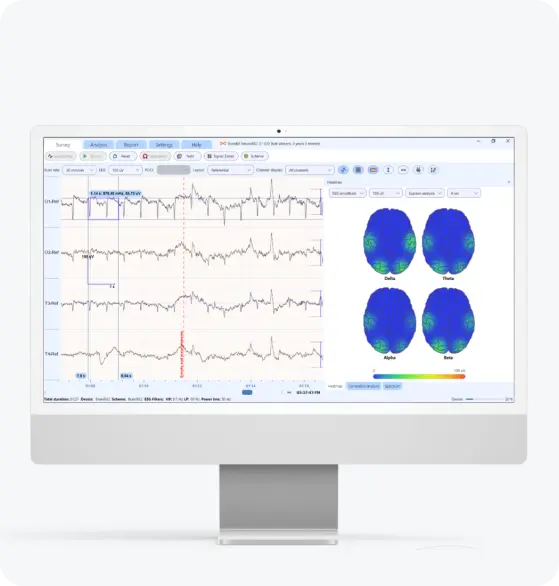

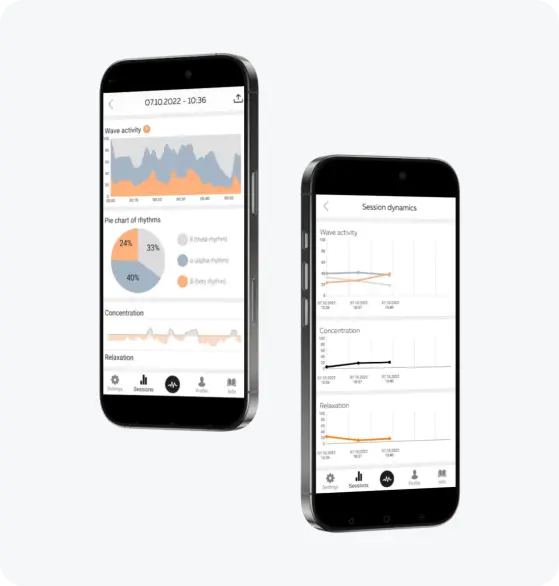

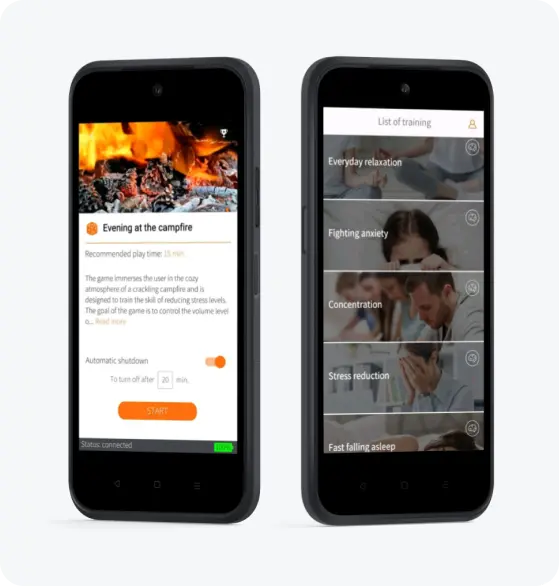

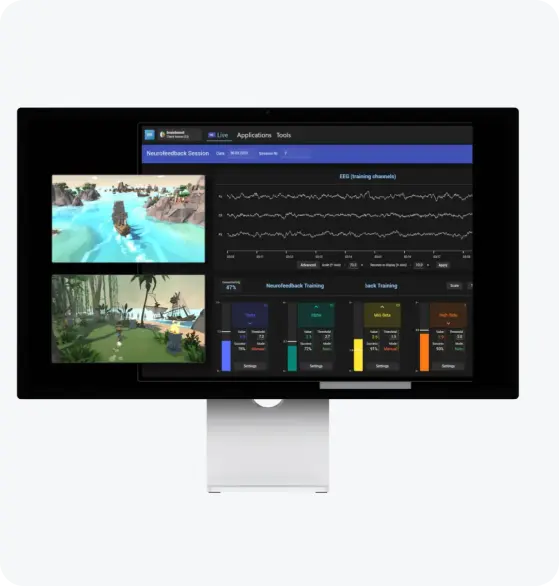

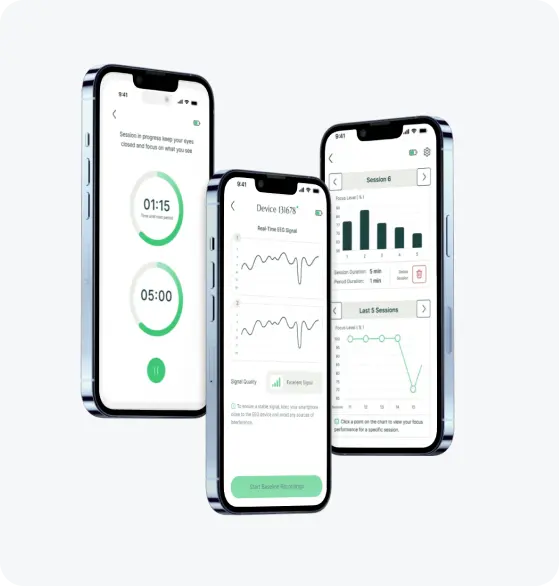

Supported software

White labeling option

Let your business grow with BrainBit. For more details follow the WL page WL needed
